30-100 mL Oral Liquid Linkage Line: Real Specs from 5 Production Models

September 8, 2026 — Haimen Yuanda Pharmaceutical Machinery Co., Ltd.

A question we get a lot: "For a 30 to 100 mL oral liquid bottle, going from 50 to 200 bottles per minute — which model should I pick?"

This article publishes every spec for all 5 models of the Haimen Yuanda 30-100 mL oral liquid washing-drying-filling-capping linkage line. You can match it directly against your monthly output, bottle type, and cap spec.

1. What this line is for

- Bottle types: 30 mL, 50 mL, 100 mL aluminum-cap molded glass bottles

- Common products: oral liquid, syrup, tonic-style oral solutions

Full process:

1. Bottle washing (clamping rotary, two-water one-air rinse)

2. Hot-air circulation oven drying

3. Multi-head linear servo filling (KGF12-10 and KGF16-12 use servo-module tracking filling; other models use fixed-head filling)

4. Automatic cap feeder

5. Multi-head mechanical four-knife rolling cap (two knives for thread rolling, two knives for lower-edge sealing)

2. The 5-model spec table (all measured data, no estimates)

| Model | Filling heads | Capping heads | Output (BPM) | Power | Power supply |

|---|---|---|---|---|---|

| YD-YXP18/LBLKGF6-1 | 6 | 1 | 50-60 | 18 kW | 380 V / 60 Hz |

| YD-YXP18/LBLKGF8-2 | 8 | 2 | 60-80 | 25 kW | 380 V / 60 Hz |

| YD-YXP24/LBLKGF10-2 | 10 | 2 | 80-100 | 30 kW | 380 V / 60 Hz |

| YD-YXP32/LBLKGF12-10 | 12 | 10 | 100-120 | 36 kW | 380 V / 60 Hz |

| YD-YXP40/LBLKGF16-12 | 16 | 12 | 150-200 | 36 kW | 380 V / 60 Hz |

3. Why 5 models, not 4 or 6

The 5 models are not sliced by "what sells best." They are sliced by the number of filling heads: 6, 8, 10, 12, 16. Every 2 additional filling heads push output up one tier. This is the standard sizing in this product category.

Specifically:

- 6-head and 8-head share the YXP18 washer; the difference is filling head count and capping head count only

- 10-head moves up to the YXP24 washer, with more clamping positions

- 12-head and 16-head go to the YXP32 and YXP40 washers, so the washing speed can keep up with the filling speed

4. Key design points

(1) Bottle washing: clamping rotary, two-water one-air

The clamping rotary method holds the bottle steady through the flip. There is no water splashing. The two-water (first tap water, second purified water) + one-air (compressed air blow-off) sequence is the standard three-step wash used in pharmaceutical plants.

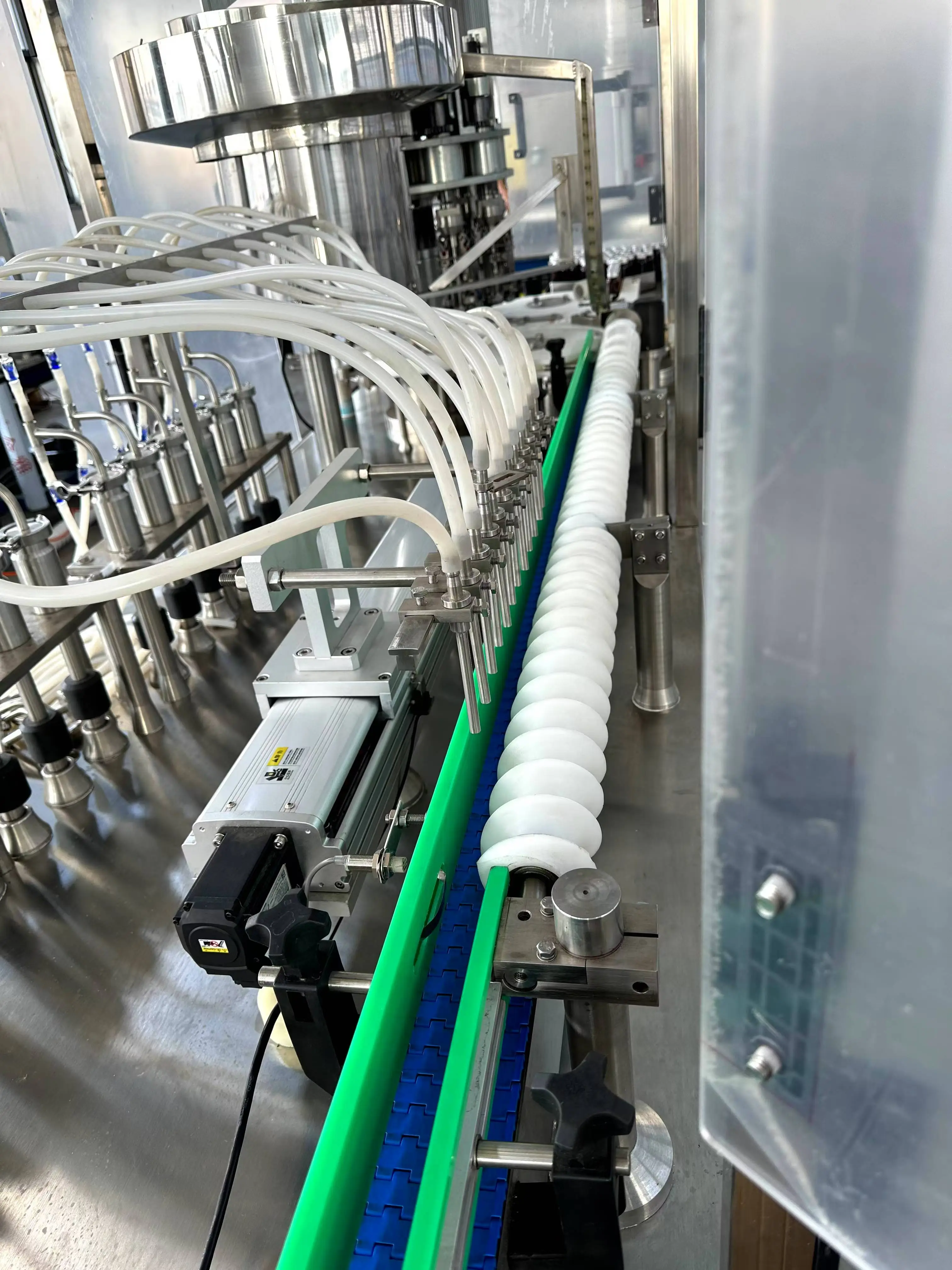

(2) Filling: multi-head linear servo

This is not a peristaltic pump. It is a linear servo system. The metering pump is available in stainless steel or ceramic. Ceramic pumps are for corrosive products. Stainless steel pumps are the standard fit.

(3) Drying: hot-air circulation oven

Not direct hot-air blowing. It is a circulation system. The temperature is more even, and bottles do not crack because they are too close to the heat source.

(4) Capping: four-knife mode

Two knives roll the thread, two knives seal the lower edge. This is the standard process for aluminum-cap molded glass bottles used for oral liquid and syrup. The rolled cap is flat, sealed well, and does not crack from stress concentration.

5. Sizing recommendation (field data, not theory)

- Below 500,000 bottles / month: 6-head or 8-head

- 500,000 to 1,000,000 bottles / month: 10-head

- 1,000,000 to 2,000,000 bottles / month: 12-head

- Above 2,000,000 bottles / month: 16-head

This is calculated on 25 working days, 8 hours per shift, single shift.

6. Line footprint and shipping

- Line length: ~6.5 to 9 m (depends on model)

- Line height: ~1.8 to 2.4 m

- Net weight: 1.8 to 4.5 t

- Fits a 20 ft or 40 ft container for sea freight

- Export packing: wooden case with foam support and moisture barrier

- Lead time: 30-45 working days for standard configuration; 60-90 working days for customized configuration

7. Compliance and after-sales

- Multiple R&D products have passed national-level certification, in line with GMP requirements

- Member of the China Pharmaceutical Equipment Industry Association

- Full technical documentation supplied before shipment: operation manual, maintenance manual, electrical drawings, pneumatic drawings, PLC/HMI program backup, material certificates, PM plan

- On-site installation, commissioning, and operator training

- Remote video support for 6 months after SAT
