Designed for high-volume liquid containers ranging from 100ml to 1000ml, this production line is suitable for disinfectants, veterinary oral liquids, and other large-format liquid products. The line integrates bottling, gas washing, filling, sealing, aluminum foil sealing, and labeling into a single continuous workflow — and individual stations can also operate as standalone machines for flexible production scheduling.

• Wide capacity range: 100ml to 1000ml bottles
• Integrated aluminum foil sealing and labeling
• Modular design — each station can run independently
• Ideal for disinfectant, animal oral liquid, and similar applications

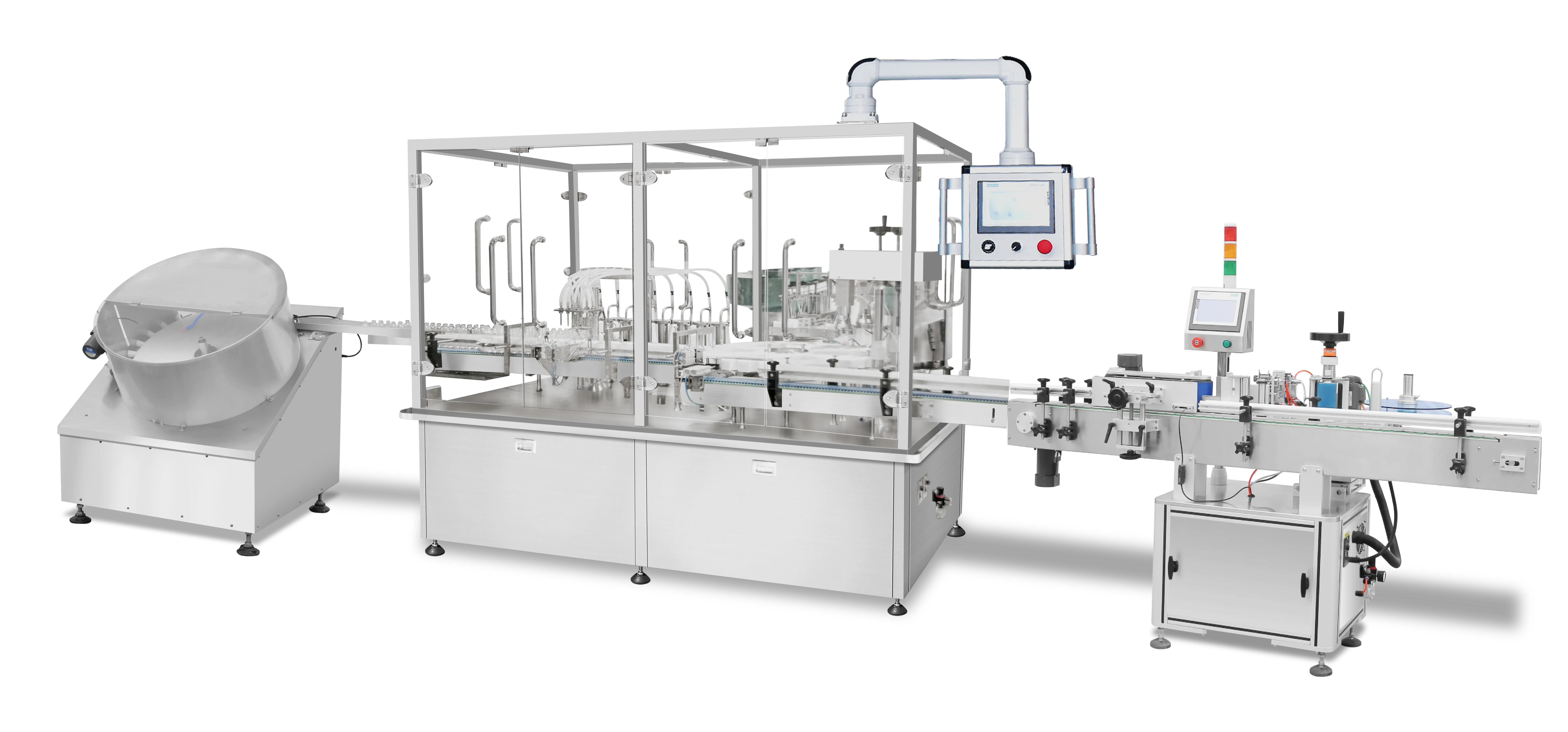

This fully integrated linkage line handles spray liquid filling for bottles from 5ml to 200ml. The complete system comprises an automatic bottle sorting machine, liquid filling and sealing machine, labeling machine, outer cap feeder, sleeve applicator, and heat shrink machine — delivering a turnkey solution from empty bottle to finished product.

• Bottle size range: 5ml to 200ml spray containers
• Complete line: unscrambling → filling → capping → labeling → shrinking
• Includes outer cap feeder and sleeve applicator for spray pump assembly
• Heat shrink tunnel for professional finished appearance

Specifically engineered for three-piece-set eye drop bottles (bottle, cap, and stopper), this production line performs automatic bottle unscrambling, precision filling, capping, and labeling in a continuous automated process. The filling machine plug system ensures the sterility and dosing accuracy critical to ophthalmic products, meeting stringent pharmaceutical GMP requirements.

• Handles three-piece-set bottles: bottle + stopper + cap
• Automated unscramble → fill → cap → label workflow
• Precision dosing for ophthalmic-grade products
• GMP-compliant design for sterile pharmaceutical production

Specially developed for ointments and liquids containing particles, this line handles automatic bottle feeding, filling, capping, screw-cap sealing (or roll-cap sealing) in one integrated process. The hopper is equipped with heating and mixing functions to maintain consistent viscosity and uniform particle distribution throughout the filling cycle — making it ideal for paste-type and suspended-particle products that fall within the broader large-capacity and specialty filling category.

• Designed for ointments and particle-containing liquids
• Hopper with integrated heating and mixing functions
• Choice of screw-cap or roll-cap sealing mechanism
• Automated bottle feeding, filling, and capping in one line

While primarily classified under oral liquid lines, this system is equally relevant to mid-range capacity pharmaceutical bottle production. It handles 30ml to 100ml aluminum-cap mold glass bottles through a complete cleaning, drying, filling, automatic capping, and thread-rolling sequence. Bottle washing uses a clamping rotary method with two water and one air rinse cycles to ensure container cleanliness meets pharmaceutical standards.

• Capacity: 30ml to 100ml mold glass bottles
• Complete wash → dry → fill → cap → thread-roll process
• Clamping rotary wash with dual water + air rinse cycles
• Aluminum cap automatic capping and sealing
